COLLET TYPE

Collet Chuck Motor

It is the shaft end where the collet chuck can be attached directly to the tip of the spindle. The chucking range of the collet is from φ0.5 to φ34, and depending on the model, commercially available tools such as Alps Tool, NT Tool, and Yukiwa Seiko can be used.

※Output 0.1 ~ 15kW, rotation speed MAX 80,000rpm can be manufactured. Also Can Customizing for your demends.

  A B
output 2.2kW 3.7kW
rpm 18,000rpm
cooling FAN
lubrication grease
distortion under 0.005mm
  A B C
output 0.75kW 1.5kW 2.2kW
rpm 18,000rpm / 30,000rpm
cooling FAN
lubrication grease
distortion under 0.005mm

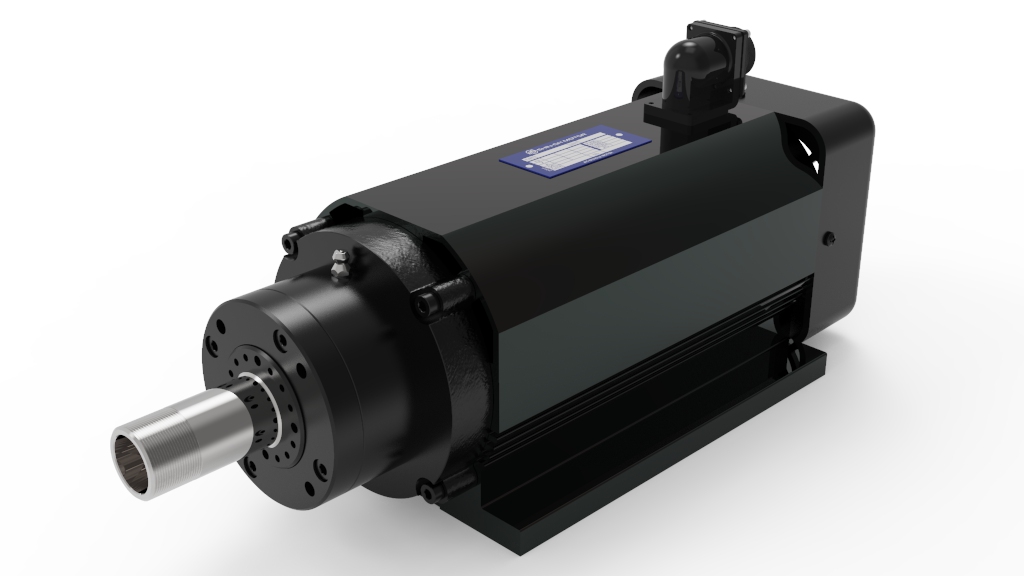

  S239B
output 3.7kW
rpm 18,000rpm
cooling FAN
lubrication grease
distortion under 0.005mm
  A B
output 0.5kW 0.75kW
rpm 18,000rpm
30,000rpm
cooling FAN
lubrication grease grease(sealed)
distortion under 0.005mm
  S252A
output 0.3kW
rpm 40,000rpm
cooling air-cooling
lubrication grease sealed type
distortion under 0.002mm
  A B
output 0.4kW
rpm 40,000rpm 60,000rpm
cooling air-cooling
lubrication grease sealed type
distortion under 0.002mm

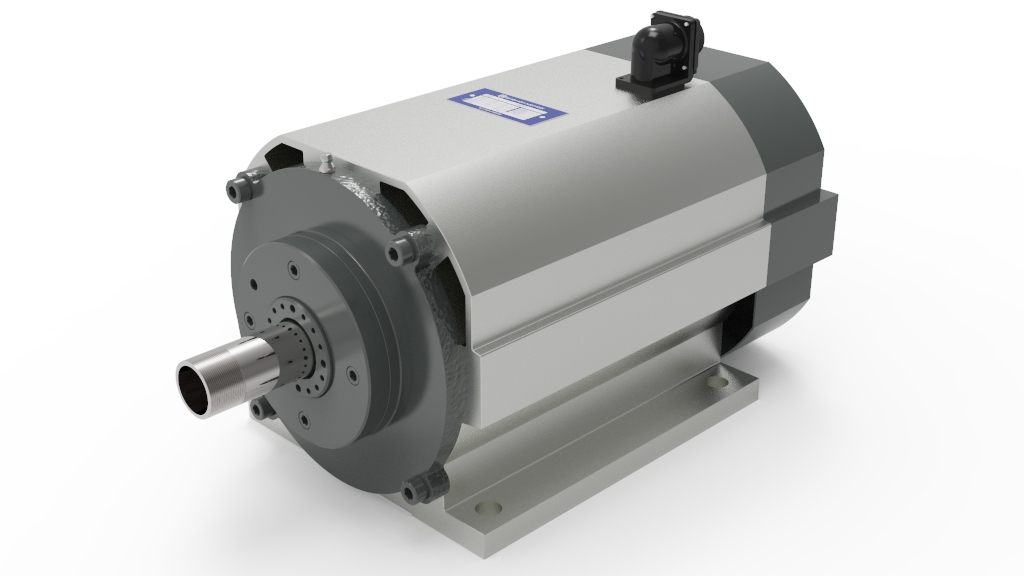

  S257A
output 5.5kW
rpm 18,000rpm
cooling FAN
lubrication grease
distortion under 0.005mm
  A B H
output 0.8kW 1.2kW 1.2kW
rpm 40,000rpm 60,000rpm 80,000rpm
cooling water cooling
lubrication grease sealed type
distortion under 0.002mm
