ATC type

The ATC type (Automatic Tool Changing) has a 7/24 taper BT shank or a BBT shank with a two-face width constraint.

It is possible to manufacture the output from 0.2kW to 15kW; and the rotational speed can be up to MAX 60,000rpm.

The shaft runout in a standard accuracy of 2 μm at the mouth and the vibration class is V3 (amplitude: 3 μm or less), which is a high precision model. Custom machines can be manufactured.

Clamp mounting type

S262EX6
Type S262EXseries
Model P6(Φ6) P3.175(Φ3.175)
Output power 1.5kW
Poles 2P
Voltage 220V
Frequency 1,000Hz
Max.rpm 60,000rpm
Spindle nose Tool direct installation
(Φ3.175/Φ6)
Cooling Water cooled
Lubrication Grease inclusion type
Distortion Test bar 20mm/5μm
Vibration V3 (Amplitude 3μm or less)
S280EX
Type S280EX20
Output power 3kW
Poles 2P
Voltage 220V
Frequency 667Hz
Max.rpm 40,000rpm
Spindle nose S20T(7/24 Taper)
※S15T(7/24 Taper)Available
Cooling Water cooled
Lubrication Grease inclusion type
Distortion 0.003mm or less
Vibration V3 (Amplitude 3μm or less)

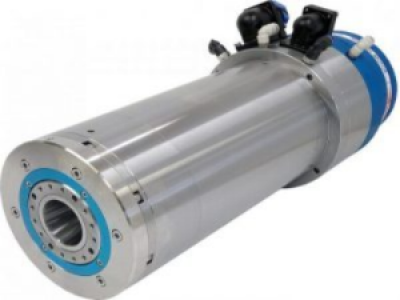

ダウンロード (1)
Type S110EX30
Model A B H
Output power 3.7kW 0.75kW 3.7kW
Poles 2P
Voltage 200V
Frequency 300Hz 120Hz 500Hz
Max.rpm 18,000 12,000 30,000
Spindle nose BT30(7/24 Taper)
Cooling Water cooled Air cooled Water cooled
Lubrication Grease inclusion type
Distortion 0.003mm or less
Vibration V3 (Amplitude 3μm or less)

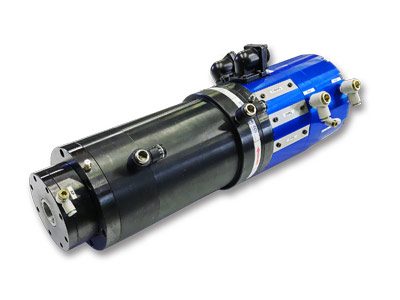

S240A
Type S240series
Model A B
Output power 0.75kW 3kW
Poles 2P
Voltage 220V
Frequency 300Hz 500Hz
Max.rpm 18,000 30,000
Spindle nose S20T(7/24 Taper)
※S15T(7/24 Taper)Available
Cooling Air cooled Oil cooled
Lubrication Grease refueling type Grease inclusion type
Distortion 0.003mm or less
Vibration V3 (Amplitude 3μm or less)

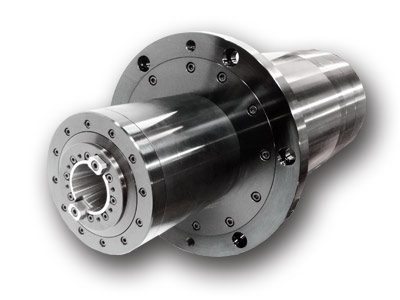

S206
Type S206series
Model C
Output power 11kW / 7.5kW
Poles 4P
Voltage 200V
Frequency 250 / 667Hz
Max.rpm 7,500 / 20,000rpm
Spindle nose BT40(7/24 Taper)
※BT30(7/24 Taper)Available
Cooling Oil cooled
Lubrication Oil mist type/ Grease inclusion type
Distortion 0.003mm or less
Vibration V3 Amplitude 3μm or less()

Type with legs

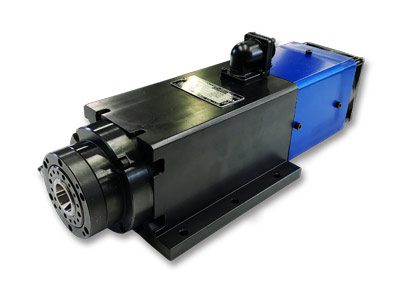

S238EX
Type S238EXseries
Model 15 20 30
Output power 1.5kW
Poles 2P
Voltage 200V
Frequency 300Hz
Max.rpm 18,000rpm
Spindle nose 15T S20T BT30
Cooling Fan motor cooling
Lubrication Grease inclusion type
Distortion 0.003mm or less
Vibration V3 (Amplitude 3μm or less)

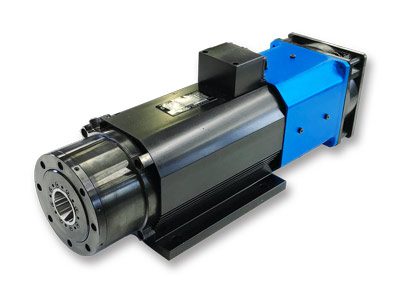

S239EX
Type S239EX30
Output power 3.7kW
Poles 2P
Voltage 200V
Frequency 400Hz
Max.rpm 24,000rpm
Spindle nose BT30(7/24 Taper)
Cooling Fan motor cooling
Lubrication Grease inclusion type
Distortion 0.003mm or less
Vibration V3 (Amplitude 3μm or less)

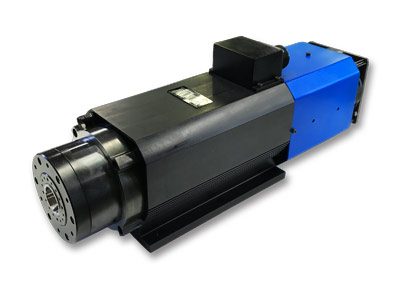

S247
Type S247series
Model A B
Output power 5.5kW 8/5.5kW
Poles 2P
Voltage 200V
Frequency 400Hz 167/334Hz
Max.rpm 24,000 10,000/20,000
Spindle nose BT30(7/24 Taper)
Cooling Fully closed or other cold type / Fan motor cooling
Lubrication Grease refueling type
Distortion 0.003mm or less
Vibration V3 (Amplitude 3μm or less)
Noimage
Type S275EX40
Output power 5.5kW
Poles 2P
Voltage 200V
Frequency 217Hz
Max.rpm 13,000rpm
Spindle nose BT40(7/24 Taper)
Cooling Air cooled
Lubrication Grease inclusion type
Distortion 0.003mm or less
Vibration V3 (Amplitude 3μm or less)

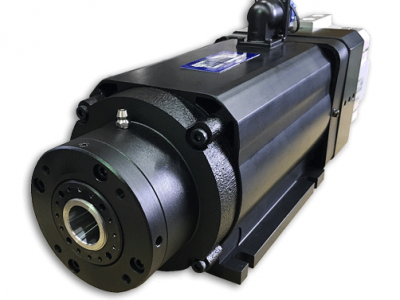

s239ex20s
Type S239EX20S
Output power 2.2(S1)/3.7(S6)kW
Poles 2P
Voltage 220V
Frequency 300Hz
Max.rpm 18,000rpm
Spindle nose S20T
Lubrication Grease inclusion type
Distortion 0.005mm or less
Vibration V5(Amplitude 5μm or less)

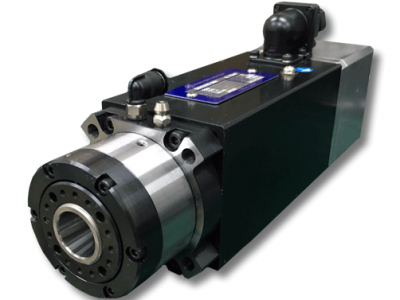

S251EX15S
Type S251EX15S
Output power 0.75kW
Poles 2P
Voltage 220V
Frequency 500Hz
Max.rpm 30,000rpm
Spindle nose 15T
Cooling Air cooled
Lubrication Grease refueling type
Distortion 0.005mm or less
Vibration V3 (Amplitude 5μm or less)
